ESE E

The ESE E

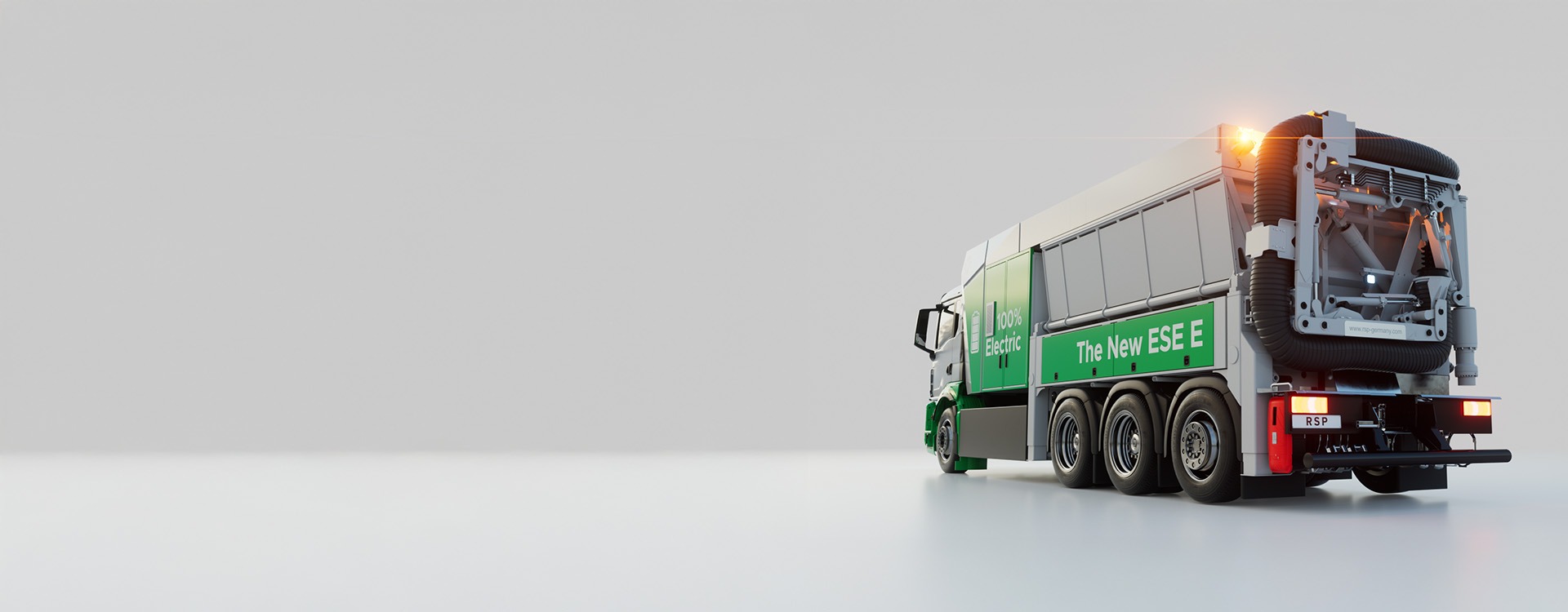

The all-electric suction excavator.
  • 100% electric
  • 460 kWh battery
  • Reduced noise emissions

The fan

  • Double fan
  • 6 switchable power levels
  • Fully electric direct drive

The container

  • 8m2 capacity
  • Left tipper

The articulated hose carrier

  • Up to 180° degree movement radius
  • Convenient control with radio remote control
  • Precise alignment over the suction material

Modern information system

Always well informed with RSP CONNECT

The electronic on-board information system with large monitor enables all machine statuses to be monitored. RSP CONNECT also offers web- and app-based information on the current vehicle status.

  • Real-time monitoring of machine statuses
  • Access via web and app
  • Efficient deployment planning thanks to GPS positioning

Assistance systems

A new approach to safety and ease of use

With intelligent assistance systems and well thought-out ergonomic solutions, the ESE 6 ensures relaxed, safe working even on long jobs.

  • RSP Drive – Remote control with radio remote control
  • Camera system for improved visibility
  • Assistance systems for hose carriers and superstructure

Technical data

Download brochure "ESE E"

Note: The technical data given corresponds to the example model shown here. Individual values may vary depending on customer requirements and equipment. Please contact us for a configuration tailored to your project.

Container

  • Material: Steel
  • Max. Capacity: 8 m³
  • Tilt direction: to the left
  • Height of the tilting axle: approx. 2,250 mm
  • Material separation: 3-stage
  • Number of filters: 40 fine filters

Equipment

  • Articulated hose carrier:
    • Reach: 6,000 mm
    • Swivel range: 180°
  • Compressed air compressor: 4.5 m³/min, 7 bar
  • Compressed air connections: at the rear, lubricated and unlubricated air
  • Compressed air hose reel at the rear: 2x, 8 m each
  • Suction nozzle holder: 1x, at the rear
  • Transport boxes: 2x, left

Suction

  • Max. volume flow double fan: 42,000 m³/h
  • Max. vacuum during operation: 0.6 bar
  • Line levels: 6
  • Operating time: 6 hours (one-third mix – suction level 2, normal working day)

Drive & charge

  • Range: up to 380 km
  • Charging: AC 22 kW/h DC 2-3 h with 150 kW/h


Vehicle

  • Battery: 485 kWh with temperature management
  • Drive: 1x 400 kW electric motor in the chassis, 4x electric motor in the body
