P Series

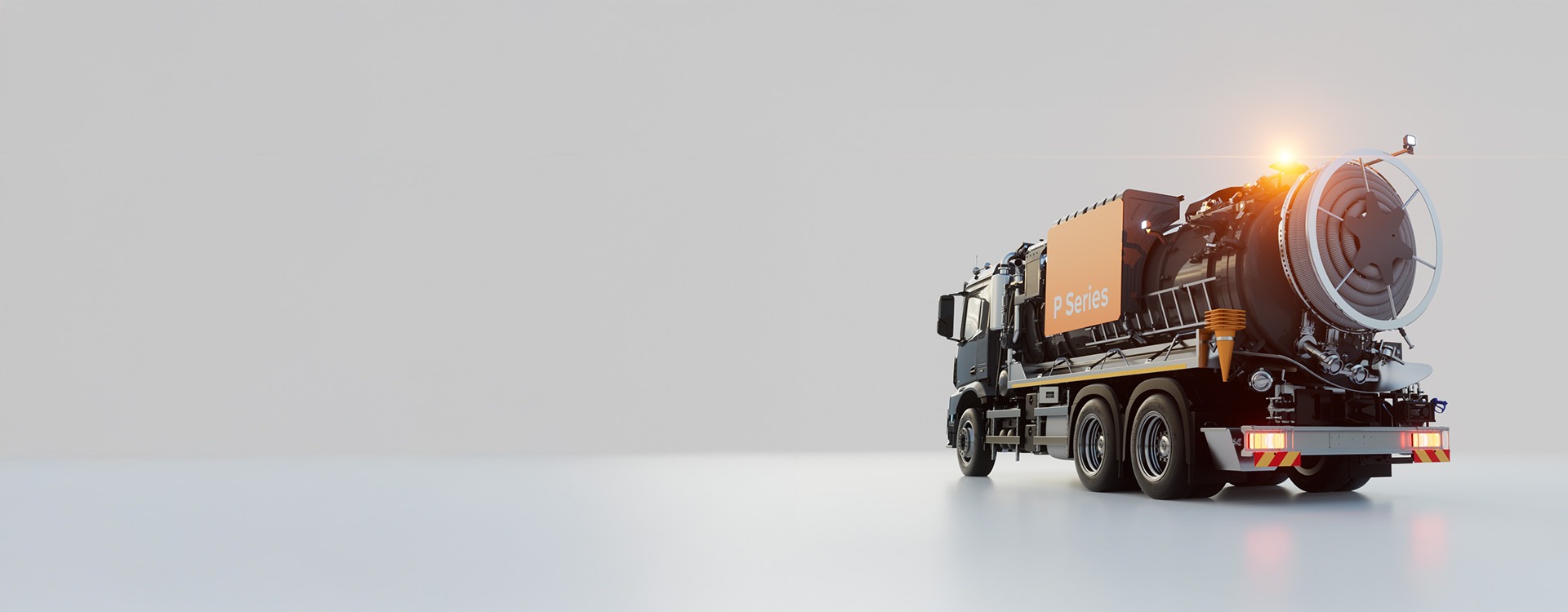

The P series

Compact suction power for municipalities and utilities

The P series is the new suction solution for municipal use. Whether cleaning cesspits, vacuuming leaves, light material, sludge or vacuuming in narrow streets – the P series impresses with its maneuverability, simple operation and reliable performance in everyday use.

  • Compact and maneuverable for inner-city use
  • Ideal for sumps, manholes, pits, squares
  • Simple operation – also for everyday municipal use
  • Robust body – designed for municipal utility vehicles
  • Low operating costs, easy maintenance

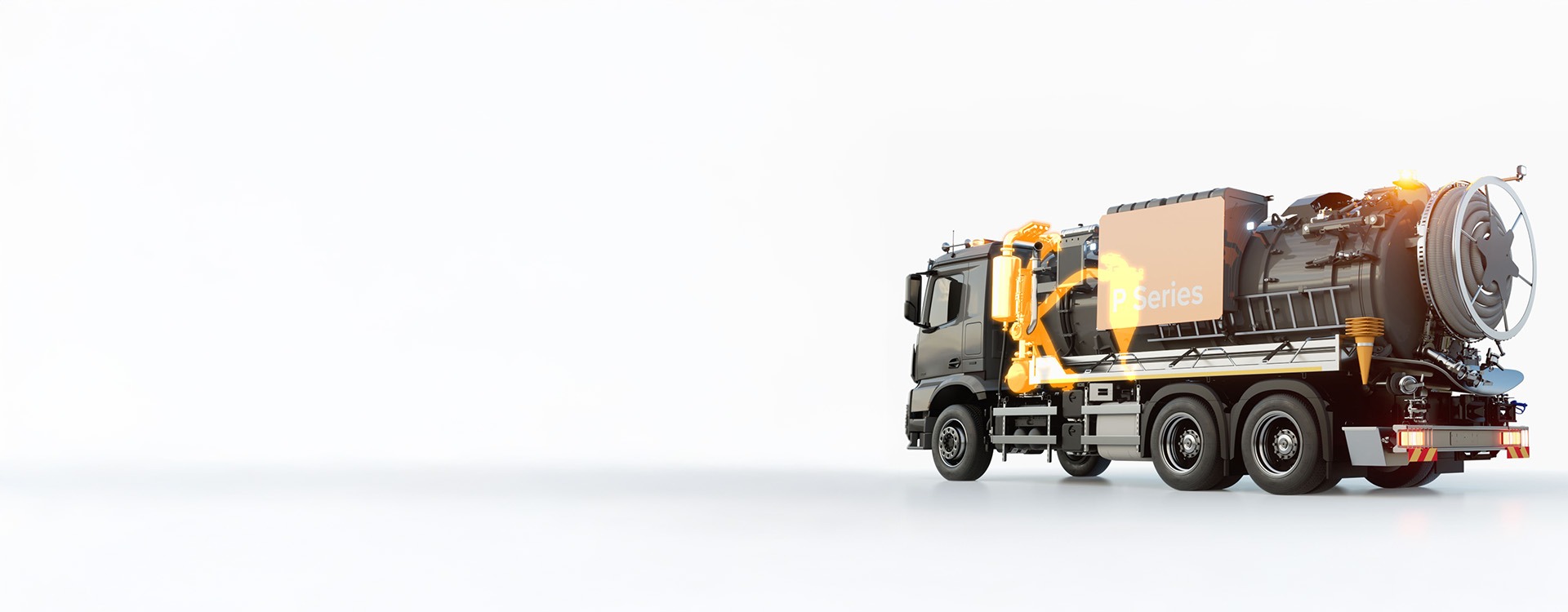

The pump

  • Efficient water-cooled pump for generating the vacuum

The container

  • Robust container technology with quick emptying
  • Compact design for narrow alleyways and city center locations
  • Various sizes in steel or stainless steel design
  • Integrated water chamber for transporting fresh water
  • 3 different emptying variants available (push-out piston, tipping or discharge emptying)

The suction device

  • Permanently installed direct suction device at the rear of the vehicle
  • Convenient emptying of gullies, manholes and floor drains
  • Ideal for municipal cleaning applications
  • Quick and targeted suction of dirt, leaves or mud
  • Easy handling thanks to ergonomic arrangement
  • Swivel hose reel optionally available

Technical data

Download brochure "P Series"

Note: The technical data given corresponds to the example model shown here. Individual values may vary depending on customer requirements and equipment. Please contact us for a configuration tailored to your project.

Container

  • Material: Steel
  • Max. Capacity: 15 m³
  • Separation chamber: 14.8 m³
  • Lateral water chamber: 1.8 m³
  • Length: 6,200 mm
  • Diameter: 1,800 mm
  • Inclination: 1.5 °
  • Lower drain opening: hydraulic opening / hydraulic closure

Suction

  • Max. vacuum pump volume flow: 1,300 m³/h
  • Max. vacuum during operation: 0.85 bar
  • Cooling the vacuum pump: Water

Water system

  • Water pump drive: hydraulic
  • Hose reel drive: mechanical
  • Hose diameter reel: DN 13
  • Hose length: 80 m
  • Operating pressure (option): 175 (140) bar
  • Volume flow (option): 80 (96) l/min
  • Side water tank capacity: 1,800 l (incl. scale)

Equipment

  • Suction nozzle holder: Stainless steel / left and right
  • Storage space: tiltable, galvanized
  • Traffic cone holder: up to 5 traffic cones
  • Ladder: aluminum / telescopic
  • Control: Stainless steel – on the right rear side
  • Hose reel: 40 m / DN 80
  • Radio remote control: one-hand operation
