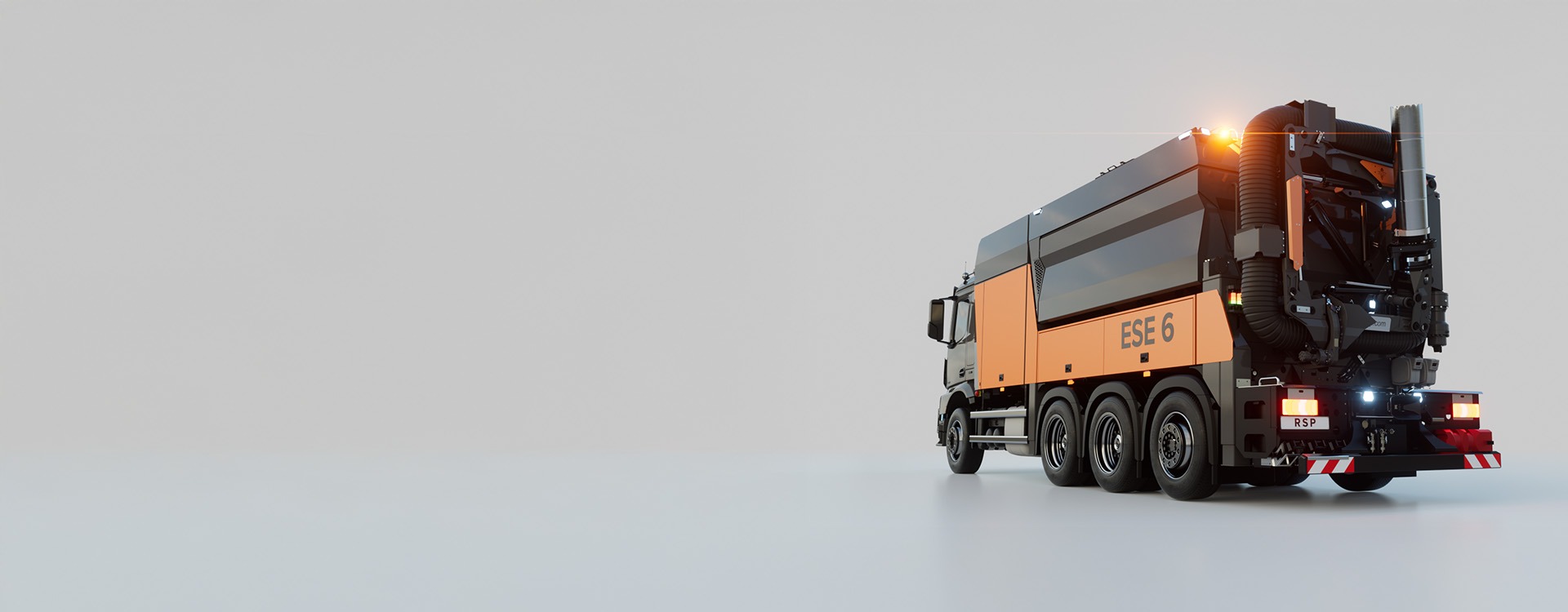

The new ESE 6

The next generation of the world's best-selling suction excavator
  • More suction power
  • Reduced fuel consumption
  • Rapid operational readiness
  • Optimized workspace
  • Reduced noise emissions

The fan

  • Optimized flow behavior
  • Up to 6% more suction power*
  • 3 switchable power levels

The container

  • Optimized geometry
  • Less dirt deposits on the lid
  • Easier cleaning

The articulated hose carrier

  • Swivel range up to 180°
  • Optional swivel joint – additional degree of freedom with a rotation range of up to 352°
    • Better access to concealed areas on the construction site
    • Lower number of realignments necessary

Modern information system

Always well informed with RSP CONNECT

The electronic on-board information system with large monitor enables all machine statuses to be monitored. RSP CONNECT also offers web- and app-based information on the current vehicle status.

  • Real-time monitoring of machine statuses
  • Access via web and app
  • Efficient deployment planning thanks to GPS positioning

Assistance systems

A new approach to safety and ease of use

With intelligent assistance systems and well thought-out ergonomic solutions, the ESE 6 ensures relaxed, safe working even on long jobs.

  • RSP Drive – Remote control with radio remote control
  • Camera system for improved visibility
  • Assistance systems for hose carriers and superstructure

Technical data

Download brochure "The new ESE 6"

Note: The technical data given corresponds to the example model shown here. Individual values may vary depending on customer requirements and equipment. Please contact us for a configuration tailored to your project.

Container

  • Material: Steel
  • Max. Capacity: 8 m³
  • Tilt direction: to the left
  • Height of the tilting axle: approx. 2,250 mm
  • Material separation: 3-stage
  • Number of filters: 40 fine filters

Equipment

  • Articulated hose carrier: with optional swivel joint
    • Reach: 6,000 mm
    • Swivel range: 180°
    • Swivel joint swivel range: 176° in each case
  • Rotation module: Vario
  • Compressed air compressor: 4.5 m³/min, 7 bar
  • Compressed air connections: at the rear, lubricated and unlubricated air
  • Compressed air hose reel at the rear: 2x, 8 m each
  • Suction nozzle holder: 2x, at the rear
  • Transport boxes: 2x, left and right
  • Hose transport system: on cover, up to 28 m suction hose extension
  • Remote control: two-handed, radio
  • Hydrostatic drive system: RSP Drive 1
  • Earthing system: yes, with 25 m cable reel
  • Axle load weighing system: visual display

Suction

  • Max. volume flow double fan: 42,000 m³/h
  • Max. vacuum during operation: 0.4 bar

Water system

  • Water pump drive: hydraulic
  • Operating pressure: 200 bar
  • Volume flow: 21 l/min
  • Hose length: 18 m
  • Water tank: 400 l
